Excavator and Backhoe Attachments

General Purpose Buckets

• All excavator buckets are designed with a taper for easy dumping of materials.
• Wear strips are horizontal.
• Front edges and side cutters are wear grade material.
• Extras Available :
  • Bolt on Side Cutters
  • Tiger Teeth
  • Bolt on Edge for Mud Buckets
  • Full bisalloy construction 12 tonne and up

Mud Buckets

• All excavator buckets are designed with a taper for easy dumping of materials.
• Wear strips are horizontal.
• Front edges and side cutters are wear grade material.
• Extras Available
  • Bolt on Side Cutters
  • Tiger Teeth
  • Bolt on Edge for Mud Buckets
  • Full bisalloy construction (optional extra)

4-in-1 Bucket

The 4-IN-1 BUCKET is a heavy duty design ideal for working in waste management and heavy duty construction sites. These buckets are complete with your choice of teeth or reversible bolt-on edges.

The 4-IN-1 BUCKET is custom fit and can be made at your preferred capacity.

Tilting Buckets

This hydraulic tilting excavator bucket is used for:

• Slope forming
• Trenching

The bucket tilts up to approximately 45 degrees

Sizes available include:

• 1.5 tonne 750mm – 1000mm
• 3 – 4 tonne 1000mm – 1200mm
• 4.5 – 6 tonne 1000mm – 1200mm
• 7 – 10 tonne 1200mm – 1500mm
• 12 – 14 tonne 1500mm – 1600mm
• 15 tonne 1500mm – 1800mm
• 20 – 25 tonne 1800mm
• 30 – 35 tonne 2000mm

Sieve Buckets

• Bisalloy construction.
• Bars at approximately 80mm centres
• Used for clean-up of work separating rocks or bricks from loose material
• Clean up work will save on tip fees.
• Sizes – 1.5 to 35 tonne

V Buckets

• These V Buckets can be individually manufactured for any ditch digging requirements
• Specifically designed for digging ditches of desired depth and slope
• Long side cutting edges grade the slopes as it digs
• Not designed for digging in rocky areas where excessive prying is required

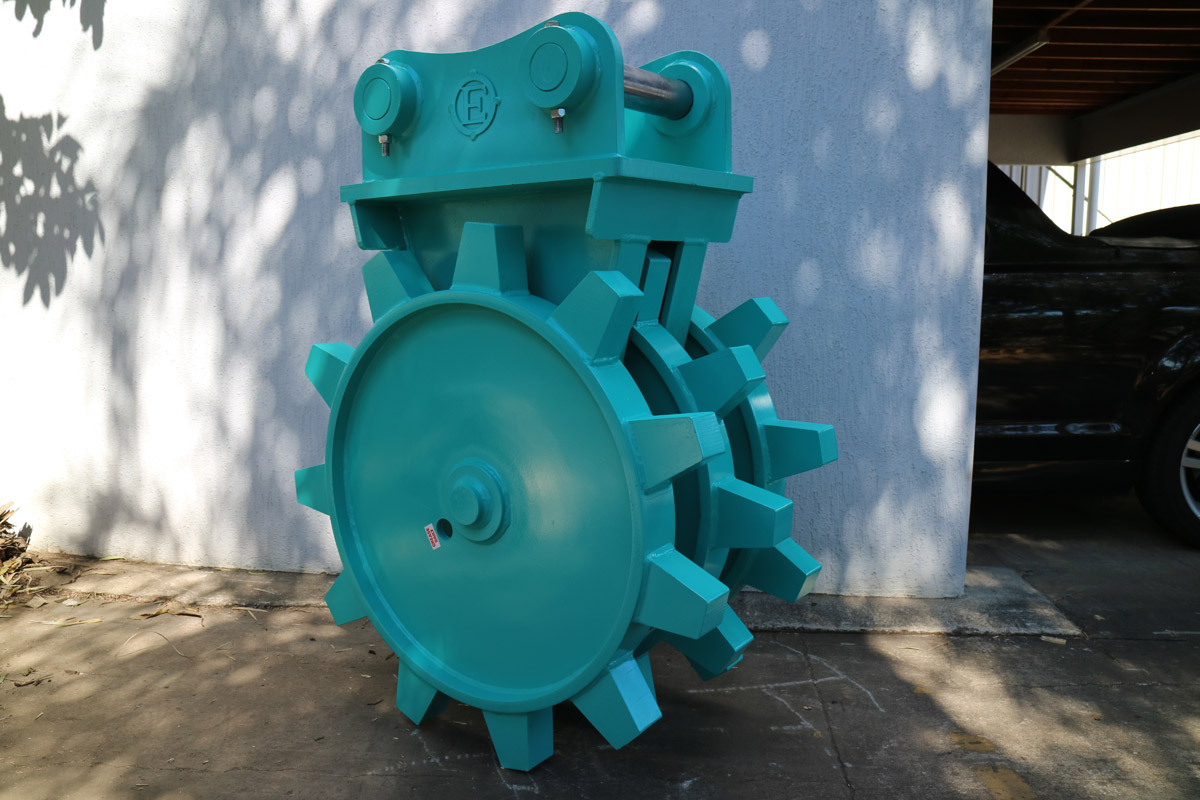

Compaction Wheels

• The compaction wheel can come in two styles – Drum or Wheel.
• They are manufactured using top quality link belt bearings.
• The design allows compacting of all types of soil in trenches or batters.
• Sizes – 1.5 to 35 tonne

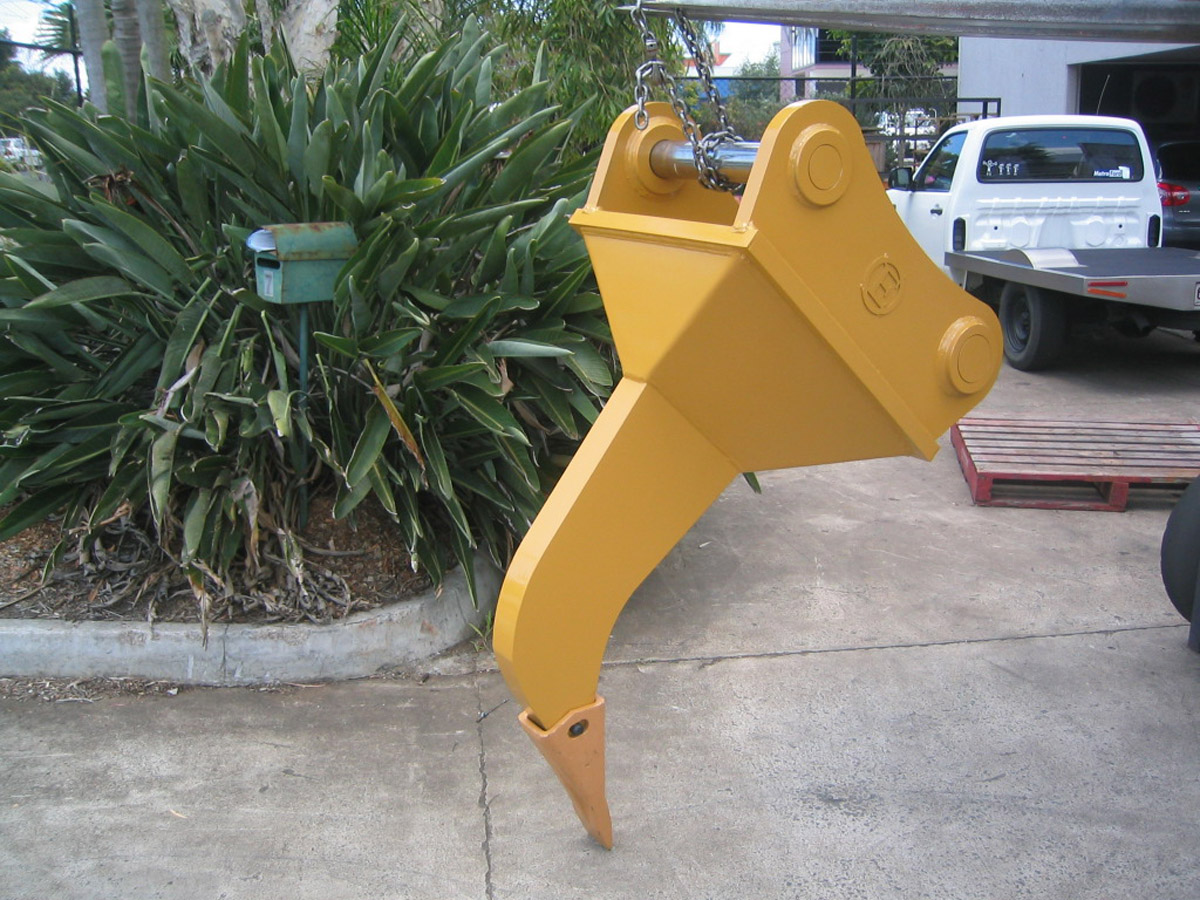

Rippers

• Heavy duty design
• Manufactured from high tensile steel.
• The Ripper Tyne is designed to break up rocky soil and material.
• 1 tonne – 120 tonne
• Multiple tyne designs available

Rakes

• Heavy duty design
• Manufactured from high tensile steel.
• Designed to clean up sticks or rake over rocky ground.
• Can be manufactured to suit your requirements
• Sizes – 1.5 to 50 tonne

Head Brackets and Auger Brackets

• Heavy duty design
• Custom Design and built to suit any model
• Multi pickup designs available
• Sizes – 1 tonne to 125 tonne

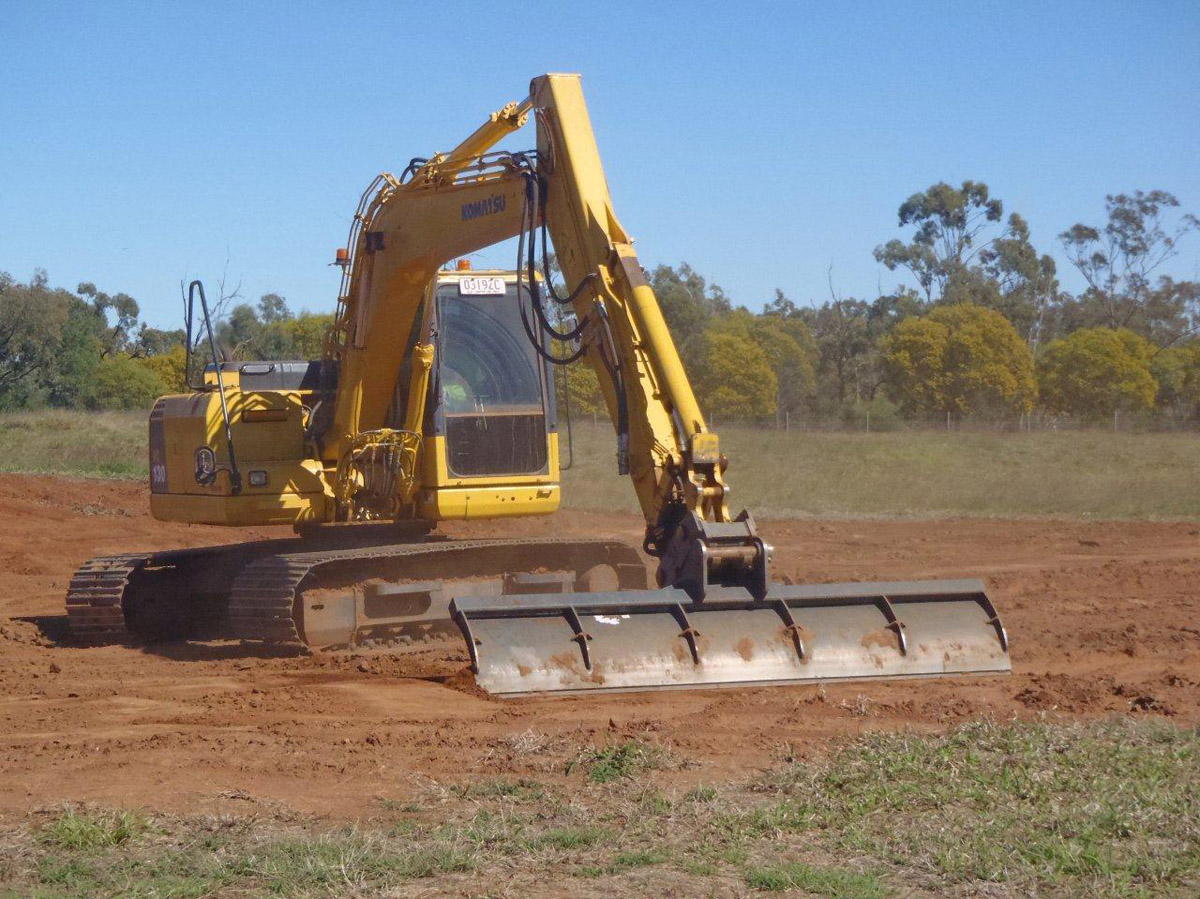

Grader Blades

Designed for excavators, the grading blade is ideal to grade and level any terrain.

• Level terrain
• Complete finish grading
• Shape drainage swales
• Build Mounds
• Grade landscapes
• Sizes – 1.5 tonne to 50 tonne
